Dungs

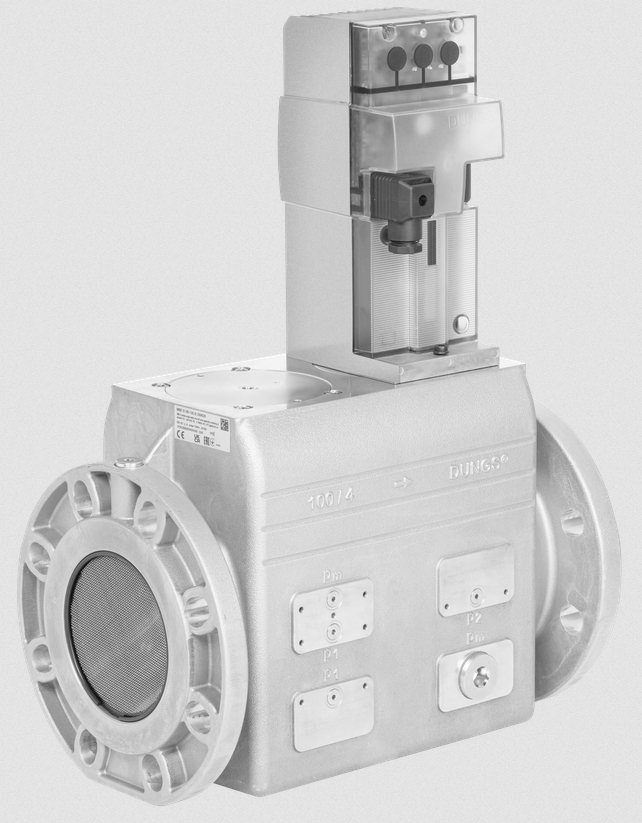

MBE-S Single Stage Safety Shut-Off Valve
- Maximum inlet pressure 70 kPa (700 mbar)
- Size: DN 65 - DN 150 PN 16
- Voltages: 100-240 VAC & 24 VDC- Regulator function as per EN 88-1 & EN 88-3
- 3 sensors (PS) cover the outlet pressure range of (0-50 kPa)
- Biogas tested to max. 1.0 vol. % H2S
- Modular system
- Worldwide approvals
- Main volume adjustment (optional)
- Suitable for up to 100 % hydrogen
- AS approval number AGA 8751
DUNGS-MBE-S-SINGLE-STAGE-SAFETY-SHUT-OFF-VALVE [PDF]
AS APPROVAL CERTIFICATE [PDF]
DECLARATION OF CONFORMITY/MANUAL [PDF]
